| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | conventional |
| Delivery Period: | Customized |
| Supply Capacity: | Negotiable |

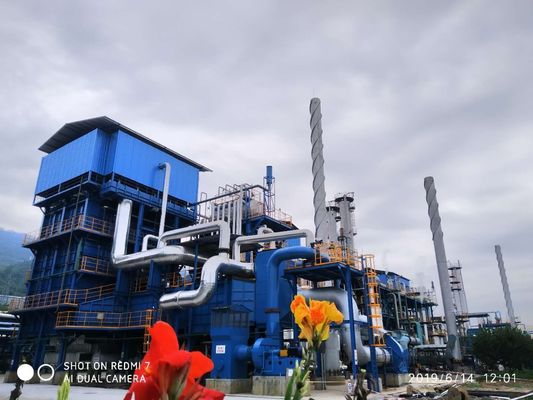

High Yield 3.0Mpa Steam Methane Reforming Plant For Chemical Industry
13250Nm3/h 0.39Nm3/Nm3 SMR Hydrogen Plant
Technology Application:
The conversion workshop section has optimized the conversion efficiency and material consumption with the raw material of natural gas and other light hydrocarbon. The Two-high THiPSATM technology is adopted for the PSA workshop section to guarantee the high yield and purity of the hydrogen, the technology has reached the world advanced level.
Key figures
Hydrogen pressure: 1.6~3.0Mpa
Hydrogen purity: 99~99.999%
Scale: 200~30000Nm3/h
Natural gas consumption: 0.38~0.42Nm3/Nm3 H2
Turndown: 30 to 110%
Features and advantages of smr hydrogen plant
Mature process technology and safe and reliable operation.
Short cycle of project construction and investment recovery rate to achieve strong market competitive.
Multistage margin recovery and the PSA desorption gas burn-back enabling energy saving and environmentally friendly.
Special adsorbent, low operating cost, high purity and high yield.
Special programmable control valve with high level of automatic.
Process Schematic
General equipment and material
| S/N | Item No. | Equipment Name | Unit | Qty. | Material |
| 1 | E0103 | Cooler for sewage discharge | Set | 1 | Q345R /20 |
| 2 | E0201 | Boiler preheater of gas from medium-temperature shift reactor | Set | 2 | S.S |
| 3 | E0203 | Desalted water preheater | Set | 1 | S.S |
| 4 | E0204 | Cooler of gas from medium-temperature shift reactor | Set | 1 | S.S /C.S |
| 5 | T0201 | Stripping tower for condensed process liquid | Set | 1 | S.S |
| 6 | T0401A~H | Absorption towers A~F | Set | 6 | Q345R |
| 7 | V0401 | Buffer tank of crude hydrogen | Set | 1 | Q345R |
| 8 | V0403 | Buffer tank of product gas | Set | 1 | Q345R |
| 9 | V0404 | Tank of negative direction discharge | Set | 1 | C.S |
| 10 | V0405 | Tank of positive direction discharge | Set | 1 | C.S |
| 11 | V0406 | Buffer tank of desorbed gas | Set | 1 | C.S |
| SMR Hydrogen Plant | |||
| 1 | 250Nm³/h Natural gas reforming - PSA hydrogen generation | Sichuan, Chengdu | 2009 |
| 2 | 260Nm³/hNatural gas reforming - PSA hydrogen generation | Mesel gas, Guangdong, Foshan | 2011 |
| 3 | 300Nm³/h Natural gas reforming - PSA hydrogen generation | Tianjin Gao Chunqing | 2008 |
| 4 | 500Nm³/h Natural gas reforming - PSA hydrogen generation | Sichuan Mount Emei | 2009 |
| 5 | 500Nm³/h Natural gas reforming - PSA hydrogen generation | Tianjin Tianlong tungsten and molybdenum | 2012 |
| 6 | 600Nm³/h Natural gas reforming - PSA hydrogen generation | Henan, Puyang | 2008 |
| 7 | 800Nm³/h Natural gas reforming - PSA hydrogen generation | Beijing XX gas company,High purity hydrogen | 2012 |
| 8 | 1000Nm³/h Natural gas reforming - PSA hydrogen generation | Datong Qinghai | 2010 |
| 9 | 1000Nm³/h Natural gas reforming - PSA hydrogen generation | Hebei, Qian'an,High purity hydrogen | 2012 |
| 10 | 1000Nm³/h Natural gas reforming - PSA hydrogen generation | Ningxia, Yinchuan | 2012 |
|
|
