| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | conventional |
| Delivery Period: | Customized |
| Payment Method: | L/C, T/T |
| Supply Capacity: | Negotiable |

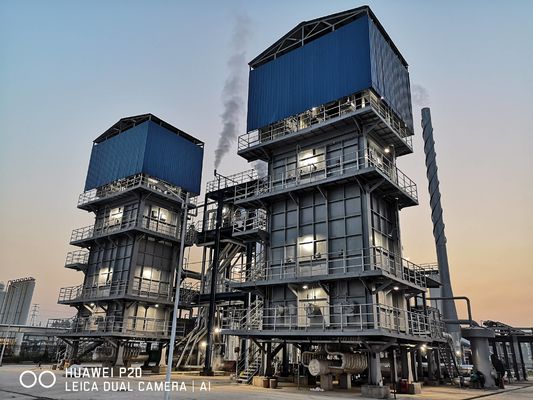

High Purity SMR Hydrogen Plant Hydrogen Production From Natural Gas
Qianjing 2*3500Nm3 Hydrogen Poduction From Natural Gas , SMR Hydrogen Plant
Technology Application:
Crude hydrogen (mainly CH4, Co, CO2, H2 and H2O) is produced from natural gas (low carbon chain hydrocarbons) by steam reforming process, and then purified by pressure swing adsorption technology to obtain hydrogen with purity meeting the requirements of users.
The natural gas is compressed to the appropriate pressure (according to the user's gas consumption and the optimal operating pressure) by the compressor, and then it is preheated for fine desulfurization. Then it enters the reformer with a certain proportion of steam for reaction. Then it passes through the waste heat boiler of the reformer gas, recovers the heat of the reformer gas, and enters the intermediate reformer for conversion reaction to obtain the crude hydrogen. After a series of heat exchange and cooling, the natural gas is cooled, Enter the pressure swing adsorption device, and finally purify.
Carbon monoxide shift reaction
Reforming gas will have its temperature lowered to 360℃ or so after waste heat recovers heat and enters medium temperature reformer. Carbon dioxide and hydrogen will be generated through reaction of carbon monoxide and steam under the function of iron catalysts. The main reaction is as follows:
CO+H2O→CO2+H2+Q
Since CO shift reaction is exothermic reaction, low temperature is beneficial to shift balance and higher CO shift rate can be obtained; thus hydrogen production of unit raw material can be improved.
Description on SMR hydrogen plant process:
Technical indexes:
Purity: 99%~99.9999%
Capacity: 2*3500Nm3/h
Features and advantages of smr hydrogen plant
Mature process technology and safe and reliable operation.
Short cycle of project construction and investment recovery rate to achieve strong market competitive.
Multistage margin recovery and the PSA desorption gas burn-back enabling energy saving and environmentally friendly.
Special adsorbent, low operating cost, high purity and high yield.
Special programmable control valve with high level of automatic.
Reference
|
|
