Small Scale SMR Hydrogen Generation Plant 300 Nm3/H Natural Gas Reforming

Small Scale SMR Hydrogen Generation Plant 300 Nm3/H Natural Gas Reforming

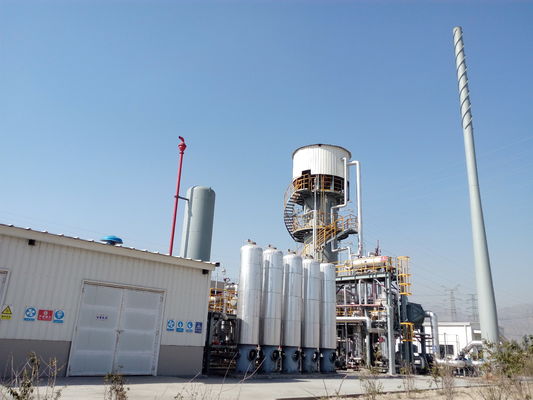

Ningxia Jinjing 300 Nm3/H SMR Hydrogen Plant

Technology Application:

Crude hydrogen (mainly CH4, Co, CO2, H2 and H2O) is produced from natural gas (low carbon chain hydrocarbons) by steam reforming process, and then purified by pressure swing adsorption technology to obtain hydrogen with purity meeting the requirements of users.
The natural gas is compressed to the appropriate pressure (according to the user's gas consumption and the optimal operating pressure) by the compressor, and then it is preheated for fine desulfurization. Then it enters the reformer with a certain proportion of steam for reaction. Then it passes through the waste heat boiler of the reformer gas, recovers the heat of the reformer gas, and enters the intermediate reformer for conversion reaction to obtain the crude hydrogen. After a series of heat exchange and cooling, the natural gas is cooled, Enter the pressure swing adsorption device, and finally purify.

Steam Methane Reforming - Hydrogen Production

TECHAIRS provides Steam Methane Reforming (SMR) technology for hydrogen production on both a small and large scale. SMR is a cost-effective and energy efficient way of producing hydrogen. High levels of purity can be reached by using Pressure Swing Adsorption purification technology.

Technical indexes:

Purity: 99%~99.9999%
Capacity:300Nm3/h

Appropriate reforming temperature, water-carbon ratio and coefficient of excess combustion air are of much significance to energy consumption of hydrogen production device

(1) Improving reforming temperate appropriately is in favor of lowering unit consumption of hydrogen production; it is particularly obvious for device with decarbonization unit.

(2) Unit consumption of hydrogen production will decline slightly when water-carbon ratio is decreased from 3.5 to 3.0; therefore, during operation, water-carbon ratio is not suggested to lower to pretty low level deliberately, so as to ensure device can be operated continuously for a long period.

(3) Increase of combustion air needs much fuel consumption. Excess air should be reduced as far as possible and fuel consumption can be decreased by burning hot air.

Features and advantages of smr hydrogen plant

Mature process technology and safe and reliable operation.
Short cycle of project construction and investment recovery rate to achieve strong market competitive.
Multistage margin recovery and the PSA desorption gas burn-back enabling energy saving and environmentally friendly.
Special adsorbent, low operating cost, high purity and high yield.
Special programmable control valve with high level of automatic.

Special sequencing valve manufacturing base

• The special sequencing valve manufacturing base under the control of Techairs is located in the outskirts of Chengdu of Sichuan. The high-performance sequencing valve designed for the hydrogen production machine is the patented product designed by our company with independent research and development, and the valve has the advantages, such as a reasonable structure, tightly sealed, reliable, short action time, flexible switch, long service life, etc. Equipped with two-way pressure resistance performance and high-speed airflow erosion resistance performance; pneumatic, electric and hydraulic switches equipped with valve status on-site indication and switch signal feedback. Nominal diameter of the valve: DN15 to DN400, nominal pressure: PN1.6 – 10.0. In recent years, it has been widely used in large-scale oil, chemical, steel, metallurgy, electricity and other enterprises.
